Treasure hunting for carbon stars, the rubies of the night sky.

Carbon stars' color make them visual magnets
R Leporis in Lepus is one of the best known carbon stars. It shines an alluring red on winter evenings.
Joseph Brimacombe

Color can be tough to come by in the deep sky, especially if you own a small telescope. Planets serve up a medley of subtle hues, as do a few planetary and bright nebulae. Stars show tints of blue, yellow, and orange, but there's nothing quite like the color red. Show a yellow star to someone at a star party and you might hear a polite "that's nice."

But point the scope at a smoldering ruby like T Lyrae? Watch their faces light up. We react with instinctive pleasure at seeing radiant reds, and there's no better place to get our fill than carbon stars.

Most carbon stars are red giants, one of the reasons for their ruddy hue. Much of the star's red complexion comes from carbon in its atmosphere. Stars generate light and heat by nuclear reactions, converting hydrogen into helium in their cores. As a Sun-like star ages, its core compresses and heats up until it can cook helium nuclei into carbon. Convective currents dredge carbon from the core and deliver it to the star's outer layers where it forms a fine soot that scatters away blue and green light. Only oranges and reds penetrate the dusty barrier to reach our eyes.

Stars burn fuels in stages

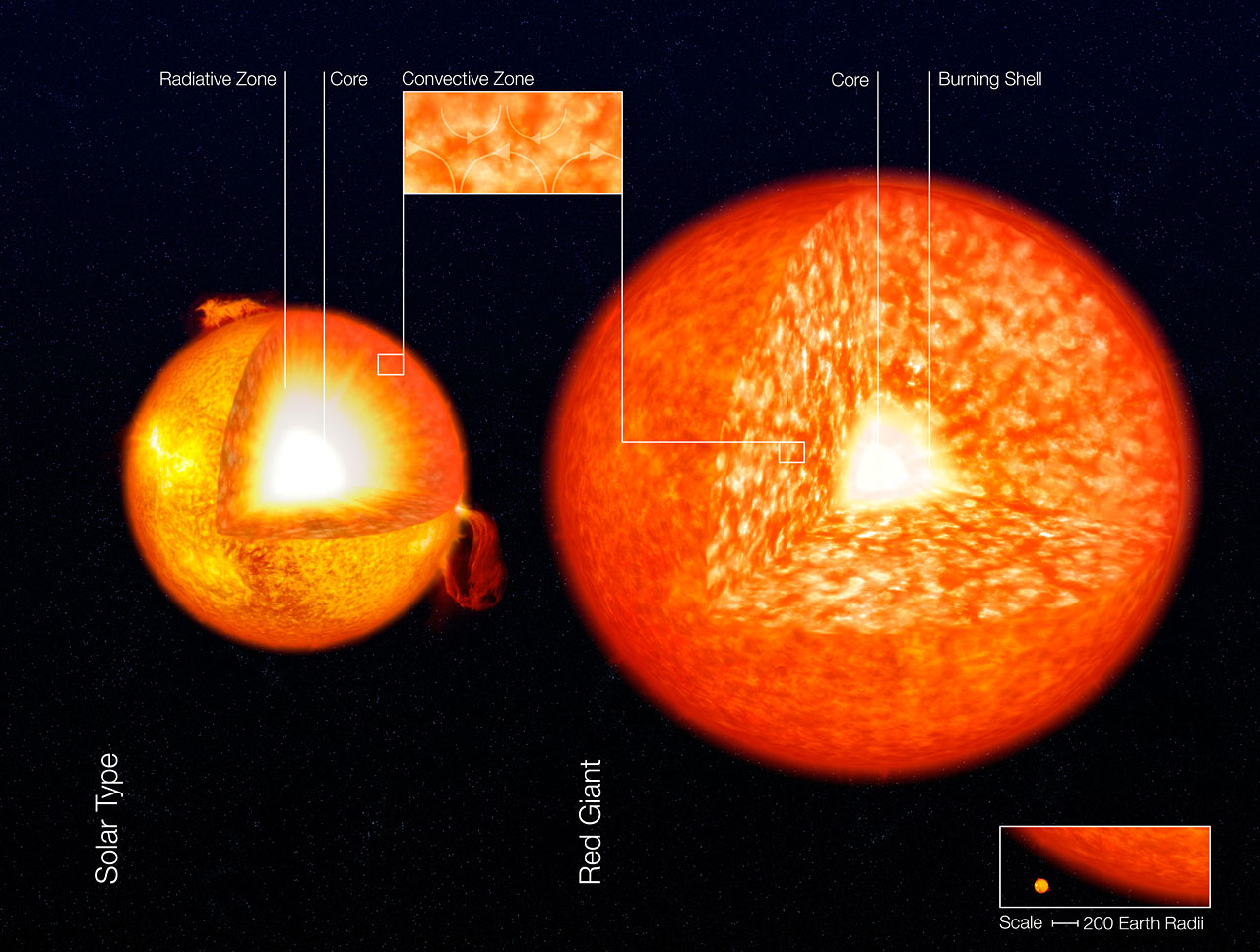

Artist’s impression of the structure of a sun-like star and red giant. Sun-like stars fuse hydrogen into helium for most of their lives before evolving into red giants. Giants fuse helium into carbon in their cores. Some of it can be delivered to the star's atmosphere where it forms carbon molecules, silicon carbide, and other carbon compounds. Image scale shown in the lower right corner.
European Southern Observatory

Sunsets are red for a similar reason. At the horizon, sunlight takes a longer path through the denser, dustier air of the lower atmosphere compared to midday. Blues and greens are scattered away, leaving only the warmer colors.

All carbon stars are variable stars — the reason for their letter designations — and vary in brightness with periods that range from a couple months to more than a year. Perception of star color has much to do with a star's brightness. One star might be touted as redder than another, but if it's on the bright end of its cycle, shining at 6th or 7th magnitude, the color will look less saturated than it does when the star hovers near minimum. R Leporis, better known as "Hind's Crimson Star," is an intensely red ember when in the magnitude 9 or 10 range. Presently around magnitude 6.5, it looks washed out in comparison. Scope size also plays into carbon star color, making each person's experience different.

Color thesaurus for carbon star observers
Need some help describing the great variety of carbon star hues? Use the "red block" from Ingrid Sundberg's color thesaurus.
Ingrid Sundberg

Another peculiarity of observing carbon stars has to do with the eye's perception of red-hued objects in low light; this is called the Purkinje Effect. U Cygni, which glimmers at 10th magnitude this week, looked dim and nearly colorless when I first glanced at it. But the longer I stared, the redder and brighter it became. Now it's on my favorites list, along with S Cephei (cherry red!) and R Leporis.

Because color perception is subjective, astronomers don't use "red" or "blue" to describe star tints. Instead, they measures a star's magnitude or brightness through a B (blue) filter and a V (visual) filter (similar to what the human eye sees). The difference between the two magnitudes is called the B–V color index. Extremely hot stars pour out more blue light and have B–V values that are generally less than zero; cooler red stars have positive indices. Blue-white Spica in Virgo has a B–V of –0.3, the Sun +0.65 (slightly yellow), and the carbon star R Leporis a whopping +5.7 (very red). Generally, the larger the number, the redder the star.

Context makes the sight that much sweeter
U Cygni (upper left) makes a beautiful contrast with an 8th magnitude white star against a delicate diffuse nebula. Lovely!
Greg Parker

Sometimes a carbon star will share the field with a star of a very different color for a striking contrast. British astrophotographer and red-star aficionado Greg Parker is smitten by U Cygni's pairing with a nearby white star against the backdrop of a delicate red nebula.

Carbon stars are scattered across the sky, guaranteeing plenty of happy viewing no matter the season. I've selected a dozen for your perusal. Every one is up during evening hours this month except V Hydrae, which I've included because it's billed as one of the reddest stars in the sky. Don't miss it.

Two coals smolder in the night
Two red stars lie near the pretty asterism Kemble's Cascade (crossing from lower left to upper right) in Camelopardalis. The lower star, marked here as SAO 12870, is better known as U Camelopardalis and has a B-V of +4.9. Click to visit Parker's website for more carbon star photos.
Greg Parker

Current magnitudes are shown in parentheses and estimated by myself or gleaned from the website of the American Association of Variable Star Observers (AAVSO). The AAVSO is a great place to print out finder charts for each of these gems. Click here and key in the star's name in the Pick a Star box. Remember to use just the first three letters of the name as in U Cyg or  R Lep (there are exceptions as in V Hya and Y CVn - click here for all constellation designations). You can also check recent brightness estimates by clicking Check Recent Observations. Every star listed is plotted on Wil Tirion's Sky Atlas 2000.0 as well.

Watch out. You might get hooked on these rubies. If you do and crave more, the Astronomical League offers a carbon star observing program featuring a list of 100 carbon stars.

Name Location B–V Magnitude range Period (days) Notes
T Lyrae 18h 32m
+36° 59′
 +3.7       7.5-9.2
(8.9)
Irreg. Very deep red!
UX Draconis 19h 21m
+76° 33′
 +3.5       5.9-7.1
(6.7)
175 Fiery orange-red
U Cygni 20h 19m
+47° 53′
 +3.7       5.9-12.1
(9.8)
463 Dim, rich red
S Cephei 21h 35m
+78° 37′
 +4.8       7.4-12.9
(9.8)
487 Deep cherry red!
TX Piscium 23h 46m
+03° 29′
 +2.5       4.8-5.2
(5.3)
Irreg. Yellow-red, bright
VX Andromedae 0h 20m
+44° 42′
 +1.6       7.5-9.7
(8.6)
375 Medium red
R Leporis 4h 59m
–14° 58′
 +5.7       5.5-11.7
(6.3)
445 Red, bright
BL Orionis 6h 25m
+14° 43′
 +2.4       5.9-6.6
(6.6)
154 Fiery orange-red
UU Aurigae 6h 36m
+38° 26′
 +2.6       5.1-6.6
(5.5)
234 Fiery, bright!
T Cancri 8h 56m
+19° 51′
 +5.3       7.6-10.5
(9.8)
482 Deep orange-red
V Hydrae 10h 51m
–21° 15′
 +4.5       6.0-12.3
(9.5)
531 Deep copper-red
Y Canum Venaticorum 12h 45m
+45° 26′
 +2.9       4.9-5.9
(5.5)
268 Yellow-orange

Searching for celestial treasure? Let our Pocket Sky Atlas be your map!
